car fakra H male solder connector for 1.13 1.32 1.37 RG178 cable

FOB Reference Price:Get Latest Price
  • 100 - 999 Pieces
    $0.73
  • 1000 - 2999 Pieces
    $0.65
  • >=3000 Pieces
    $0.62
Lead Time:
Quantity(Pieces) 1 - 100 101 - 1000 1001 - 3000 >3000
Est. Time(days) 2 3 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
SH-Link

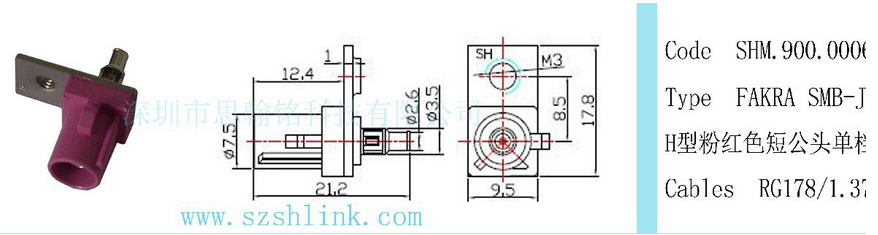

Model Number:
SHM.900.0006-6.H
Application:
Automotive
Type:
FAKRA
Gender:
Male
Color:
Violet
Connector type:
H type
cable size:
0.81/1.13/1.32/1.37/RG178
Product name:
FAKRA connector
Certificate:
ISO9001/TS16949
Material:
Brass
Pin:
Brass,gold plated
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
100pcs/bag
Port
Hongkong
Lead Time :
Quantity(Pieces) 1 - 100 101 - 1000 1001 - 3000 >3000
Est. Time(days) 2 3 5 To be negotiated

Description:

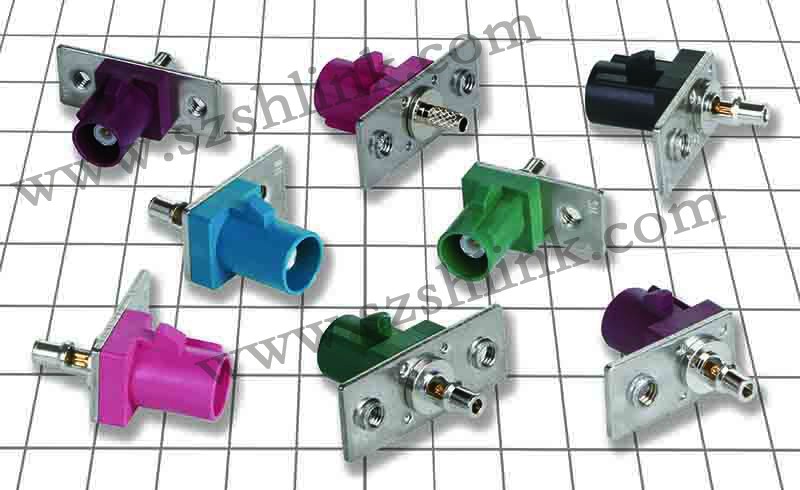

FAKRA connector is one of the auto parts. They are widely used in GPS, Remote control, car phone, car TV, hi-fi equipment, antennas, etc. It is mate with the same colors or connector and socket, and the structure is to be double-locked and fool-proofing for them.



Major characteristics:

   Double-locked, fool-proofing assembly with the color and the structure

   The connector is be protected by the cap .

   Easy to assembly

   Many difference between the connector and the cap.

• The product technical characteristics:

   Body: Brass, Ni-plated

   Socket: beryllium-copper, Gold-plated

   Pin contact: Brass

   Insulator: PTFE

   Crimp ferrule: brass, Ni-plated

   O-ring: beryllium-copper

   Shell: PA66+30%GF

• Technical characteristics

   Impedance: 50Ω

   Frequency Range: 4GHz

   Withstanding Voltage: 1000V(RMS)

   Contact resistance:

   Center contact: ≤ 20m

   Outer contact: ≤10m

   Insulation: ≥1,000MΩ

   VSWR: DC - 2GHz<1.2

• Mechanical characteristics:

   Assembly: locked

   Durability: ≥ 500 cycles

   Temperature: - 40 - +85°C
